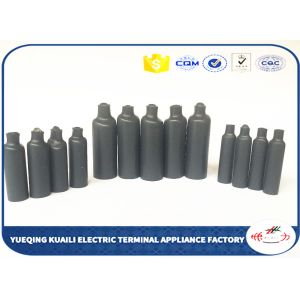

AMC Adhesive lined Polyolefin Mini Insulating Caps Black And Transparent

Name: AMC Adhesive lined Polyolefin Mini Insulating Caps Black And Transparent
Brand: KUAILI
Price: 1 USD

Brand Name : KUAILI

Model Number : Caps For Cables

Certification : ROSH

Place of Origin : China

MOQ : consult

Price : consult

Payment Terms : D/A, D/P, T/T, L/C

Supply Ability : 50000 per week

Delivery Time : 5~30days According to the order quantity

Packaging Details : 100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.

name : Adhesive-Lined Insulating Caps

Color : Black and transparent

Rated Voltage : 600V

Tensile Strength : 14MPa

Start to shrink : 30.35mm

Contact Now

Mini Heat Shrink adhesive-lined Cap /wire end caps for cable

Applications:Specially designed to provide mechanical and environmental of stub splice in electrical harness. Clear caps allow see-through inspection. Black caps are flam-retardant.

Characteristics:4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters.
Mechanically tough jacket provides strain relief and abrasion protection.
Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range.

Operating temperature range:Operating temperature:-40 ℃ to 105 ℃
Minimum shrink temperature: 100 ℃
Minimum fully recovery temperature: 135 ℃

Colors:Black (Standard), Clear(Standard)
Size selection
Always order the largest size that will shrink snugly over the component to be covered
Other cap lengths available on request.

AMC-E

		Inside diameter(including core)		Recovered thickness
Part Number	Standard Length as supplied (mm	Minimum Expanded as supplied	Maximum Recovered After heating	Minimum total wall After heating	Minimum jacket wall after heating	Minimum adhesive wall after heating
AMC-E-1	30.35	5.72(0.225)	1.27(0.050)	1.20(0.047)	0.64(0.025)	0.56(0.022)
AMC-E-2	30.35	7.44(0.293)	1.65(0.065)	1.52(.0060)	0.76(0.030)	0.76(0.030)
AMC-E-3	40.50	10.85(0.427)	2.41(0.095)	1.91(0.075)	0.89(0.035)	1.37(0.054)

AMC-D

		Length		Inside diameter		Recovered wall thickness
Part Number	Size	Nominal overall as supplied	Minimum open barrel as supplied	Minimum expanded as supplied	Maximum recovered after heating	Total wall after heating
AMC-D-1	1/8	22.0(0.87)	12.7(0.50)	3.2(0.125)	0.58(0.023)	1.22±0.15(0.048±0.006)
AMC-D-2	3/16	25.4(1.00)	15.2(0.60)	4.8(0.187)	1.52(0.060)	1.57±0.20(0.062±0.008)
AMC-D-3	1/4	28.4(1.12)	15.2(0.60)	6.4(0.250)	2.03(0.080)	1.98±0.20(0.078±0.008)
AMC-D-4	3/8	31.8(1.25)	18.3(0.72)	9.5(0.375)	2.29(0.090)	2.08±0.25(0.082±0.010)
AMC-D-5	1/2	38.1(1.50)	21.6(0.85)	12.7(0.500)	2.29(0.090)	2.54±0.25(0.100±0.010)
